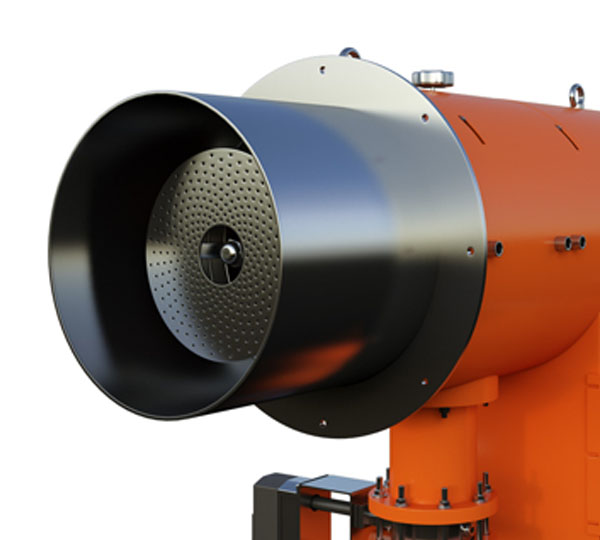

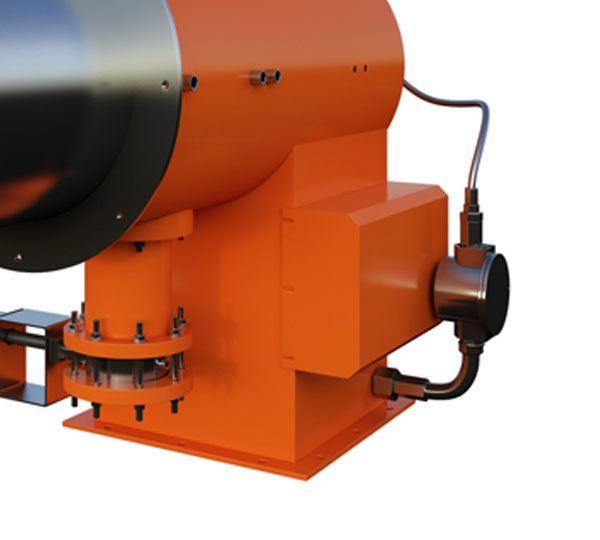

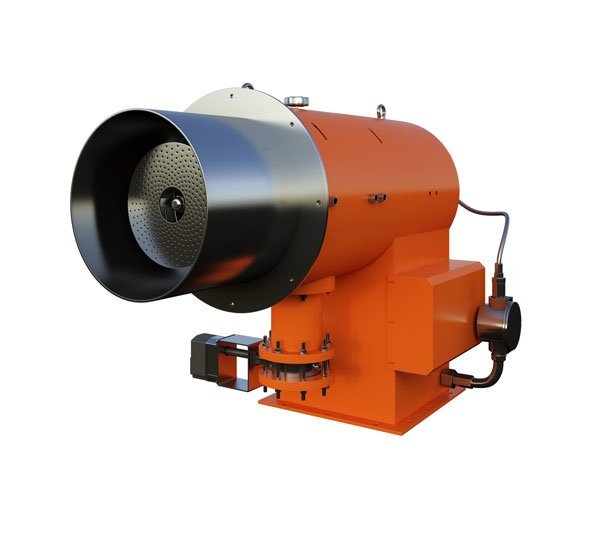

Gas BurnerS

W Series

Gas Burner

All W Series Weishaupt Burner use the latest microprocessor technology for the control and monitoring of all the burner functions. As a result not only do they offer improved precision and ease of use but they also represent fantastic value for money.

Size

WL 5 16.5 - 55 KW

WL10 to WL40 30 - 570 KW

Features
  • Economy through digital technology
  • Fully automatic operation
  • Compact construction
  • Operational safety and reliability.
  • Error free plug connection
Application

Standard execution burners are suited for a diverse range of heat exchangers as well as, for example, air heaters.

Gas BurnerS

Monarch

Gas Burner

Weishaupt gas burners satisfy the requirements of operating reliability, easy installation, good operation, convertability to a different type of gas and low noise operation.

Size

Size 1 - 3 60 - 630 KW

Size 5 - 11 200 - 4750 KW

Features
  • Large capacity and range of application
  • Automatic sequence of operations
  • Combustion chamber pre-purge
  • Safe flame monitoring
  • Stable fan characteristics – good combustion results
  • Air regulation on pressure side
  • Quiet operation
  • Hinged burner casing
  • Simple installation, adjustment and servicing as components are easily accessible
  • Easily converted to other types of gas
  • Fuel change on the dual fuel burner is carried out by means of a manual or automatic change over. Conversion work is not necessary
  • Automatic air closure on burner shutdown
Regulation

Regulation takes place according to burner size and requirements:

  • Sliding two stage Z
  • Sliding two stage ZM
  • Modulating (the standard sliding two stage ZM burner with a 42 secs servomotor can become modulating by fitting a suitable controller)
Application

The burners can be used on heating appliances such as hot water boilers, steam boilers, air heaters and for certain heating processes. The burners are used in particular on modern boilers with high ratings as they can overcome high combustion chamber pressures.

Gas Burner

Industrial

Gas Burner

Weishaupt industrial burners, sizes 30 to 70, has been especially designed for industrial capacity ranges. The monobloc burners are noteworthy for their large capacity and operational ranges

Size

Size 30 - 70 300 - 10000 KW

Features
  • Compliance with the most stringent directives and emission limits
  • Large capacity and operational ranges
  • Stable fan reference line - good combustion behaviour
  • Quiet operation
  • Burner housing can be hinged open
  • Easy to install, set and service
  • Automatic air shut off on burner shut down
Regulation

Dependent on fuel, burner size and requirements, the regulation of air and fuel is by:

  • Two and three stage -- For sliding two stage control, partial and full load are set positions within the regulation range. The burner’s firing rate slides between the two load points, depending on the heat demand, for which the servomotor runtime can be set between 30 and 120 s. Thus there are no sudden large increases or decreases in the amount of fuel used.
  • Modulation -- The standard sliding two stage burner can be made to modulate with the addition of a capacity regulator. Modulating burners operate at any point within the regulation range, depending on the heat demand. The servomotor runtime is approximately 40 s. This precision enables the burner to operate with reduced excess air at full and partial load. Thus improving the combustion figures. The regulating range between partial and full load is also increased.
Application

The burners can be used with heat exchangers such as hot water boilers, steam boilers, air heaters, and for certain process applications. As the burners are capable of overcoming high combustion chamber resistances, they are used primarily on modern high rated boilers.

Gas Burner

WM Series

Gas Burner

Weishaupt WM Series gas burners are equipped as standard with electronic compound regulation and digital combustion management. Modern combustion technologies demand a precise, continually reproducible dosing of fuel and combustion air. Only in this way can optimal combustion figures be ensured over extended periods

Size

WM - G10 20 – 1250 KW
WM - G20 250 – 2600 KW

Advantages
  • Digital Combustion management with electronics compound regulation at all ratings
  • More compact that previous burners a similar rating
  • Sound attenuated air inlet as standard for quieter operation
  • Powerful fan due to the specially developed fan geometry and air damper control
  • Gas Burners are delivered with Oil nozzles fitted and the mixing assembly preset for the required output of the burner
  • IP 54 Protection as standard
  • Easy access to all components, such as oil nozzles, air damper and combustion manager
  • Safe operation with 3 stage (depending on the type of capacity on the type of capacity regulation) sliding 2 stage / modulating operation as standard
  • Computer controlled function test at the factory of each individual burner
  • Burner can be supplied pre-wired with plug connections
  • Excellent price / capacity ratio
Regulation

Dependent on fuel, burner size and requirements, the regulation of air and fuel is by:

  • Two and three stage -- Gas Burners have a nozzle assemble with two or three nozzles. A change in firing rate is effected by opening and closing of solenoid valves 2 and 3 with the relevant air volume.
  • Two and three stage -- For sliding two stage control, partial and full load are set positions within the regulation range. The burners firing rate slides between the two load points, depending on the heat demand. Thus there are no sudden large increases or decreases in the amount of fuel used.
  • Modulation Modulating burners operate at any point within the regulation range, depending on the heat demand.
Application

The Weishaupt WM series Gas Burners are tested to EN 267 and suitable for Heat exchangers, hot water plant, Steam boilers and high pressure hot water plant, Air Heaters.
